MOLDING SIMULATIONS AND DIMENSIONAL MANAGEMENT

COMMITMENT TO PROVIDE THE HIGHEST QUALITY AND ROBUST CAD
AIDED ENGINEERING SERVICES YOU CAN RELY ON



Let us help you to answer critical design questions before they get expensive. Our Mission is to provide experienced evaluation of all aspects of your product and deliver comprehensive results you can trust. CAE RESUTL team provides a 24 hour servise to ensure the Customer always gets the information on time.


team picture

CAE RESULT international is network of plastic rheology engineers, tool and tolerance specialists for Czech Republic and Europe. Our team has collected practical experiences from automotive and others sectors to be able to build complex simulation models and predict all potential defects, which can endanger your production.

MOLDFLOW

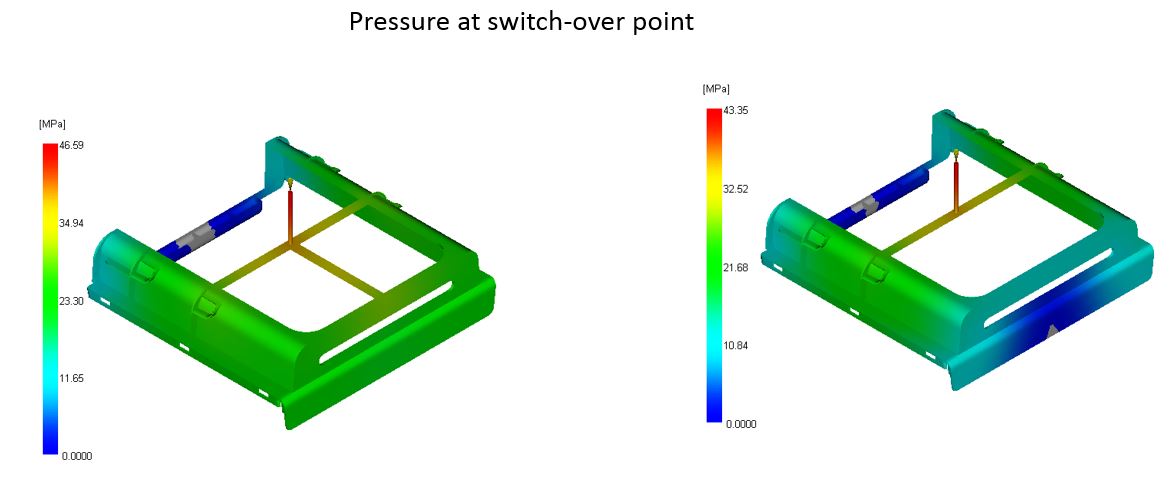

Our Moldflow Certified engineers support you over all phases of the product development. Whether you look for optimal wall thickness for your part and ideal polymer type during quotation phase or you want to avoid quality issues and optimize your part geometry early in design process.

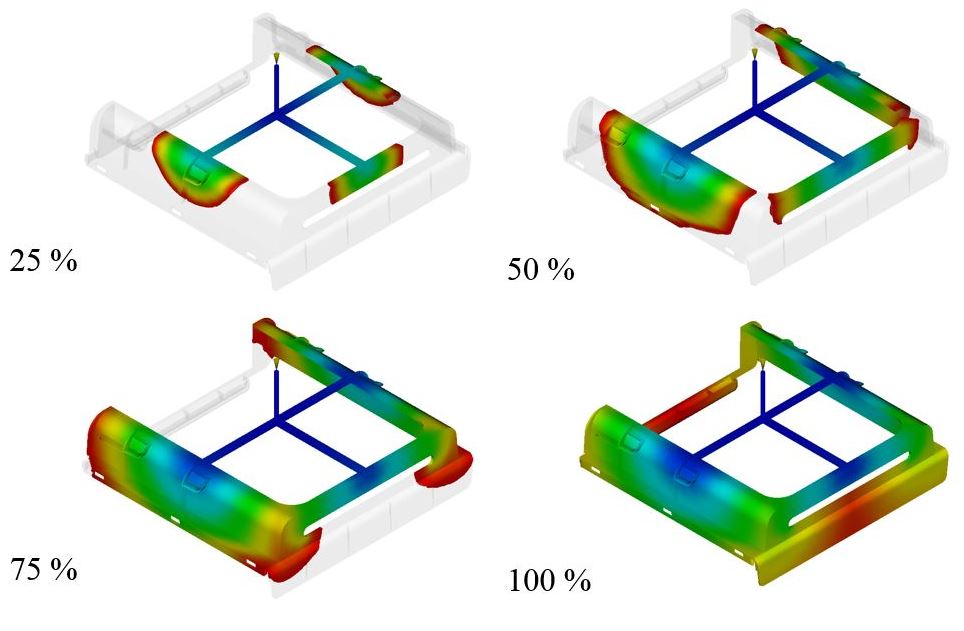

Gate management

Find the best gating strategy, reduce or eliminate many production problems and defects by selection correct gate number and gate position…

We offer the following services:

  • Determine the optimal number of gates
  • Investigating different gate locations
  • Validating and balancing the gate location

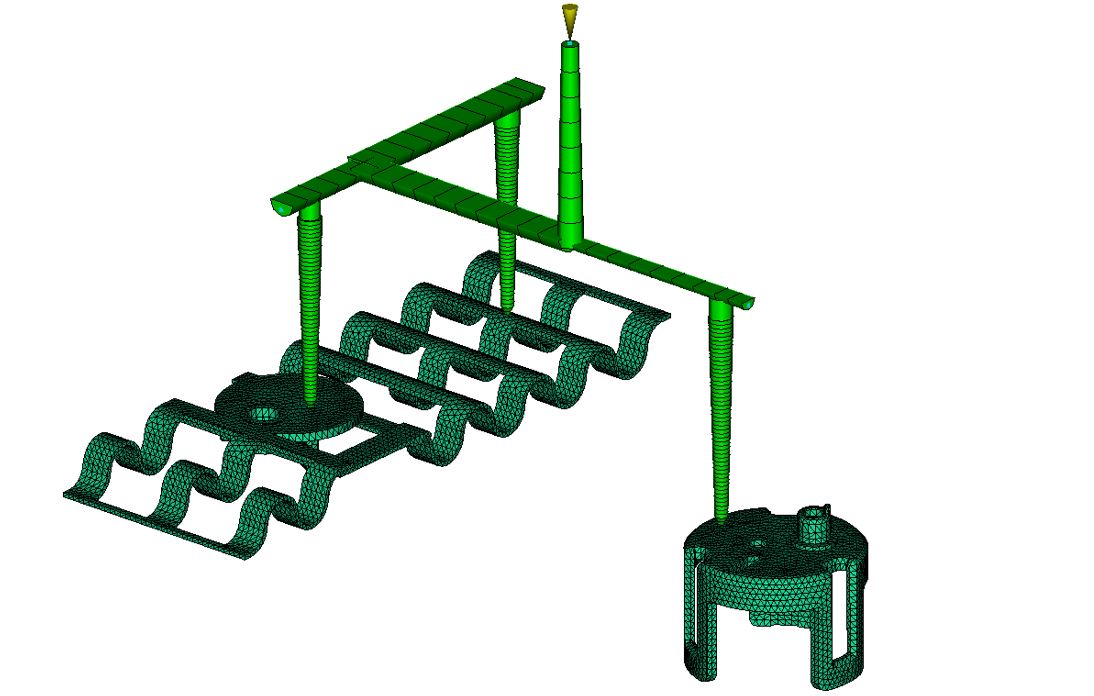

  • Feed system optimation and runner sizing

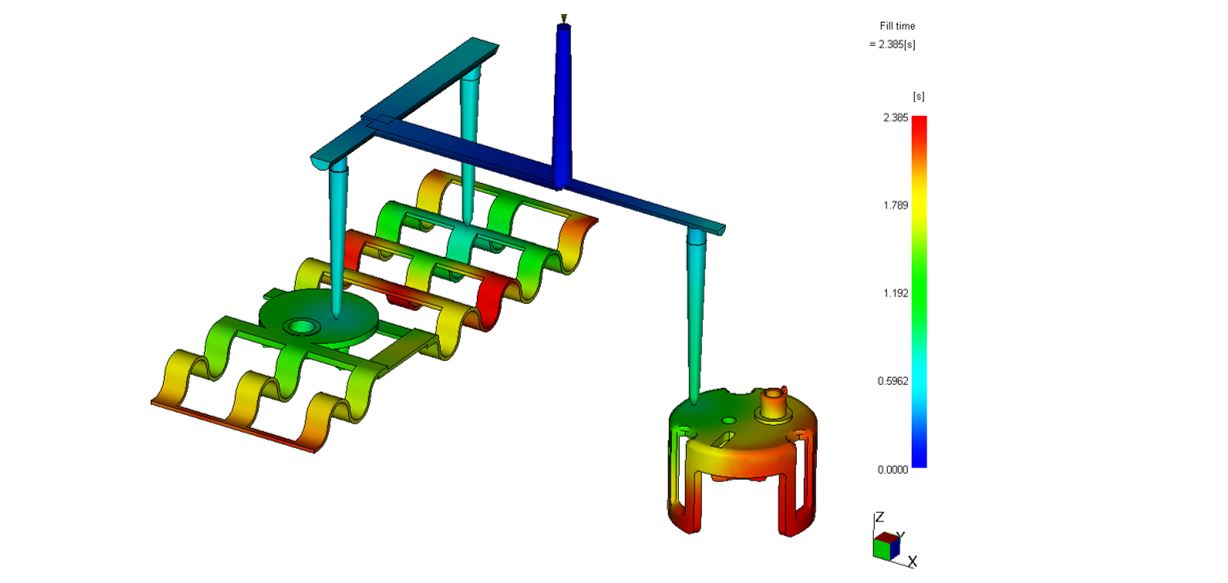

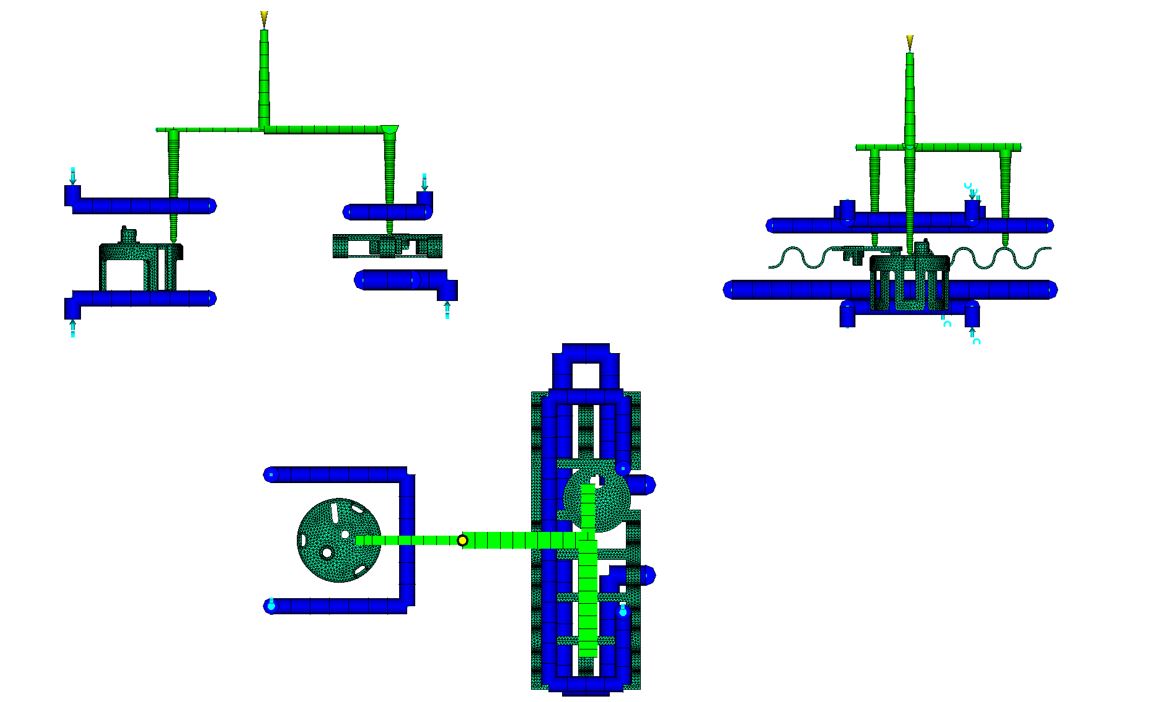

  • Runner balancing for multigated parts and family molds

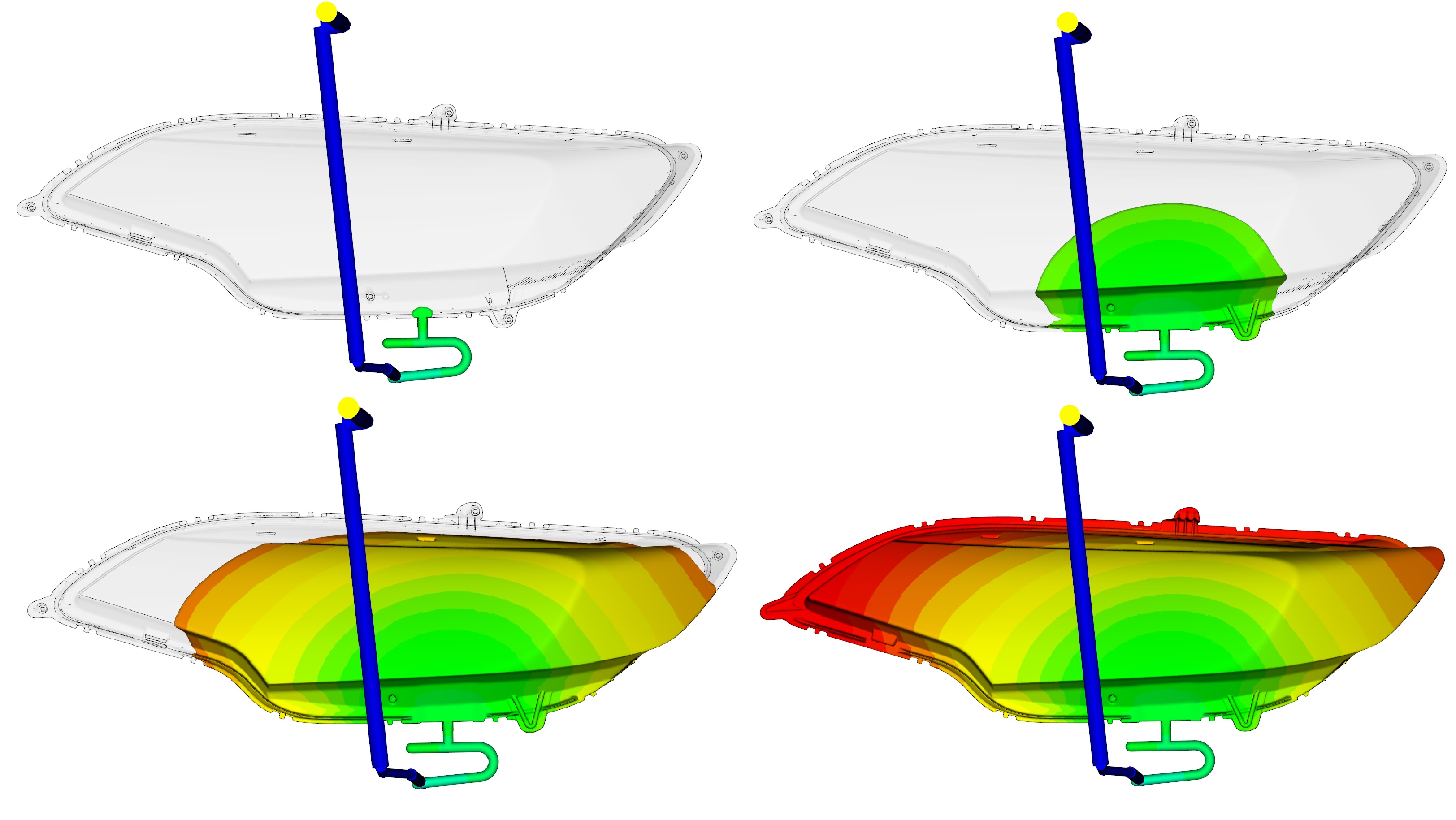

  • Controlled valve gate opening

DIMENSIONAL MANAGEMENT
The current trend representing high quality vehicles is more than clear, all suppliers around the world have been pushed towards low tolerances and smaller clearances as possible. The tolerance chains are getting larger along side with more complicated parts, that is subject to increasingly strident requirements. The Dimensional management is the only way of ensuring the greatest possible product tolerances early in development and thus satisfy a stern geometrical specifications.

tolerance-picture

We offer a following dimensional engineering and tolerance analysis services:

  • Tolerance analysis and simulation
  • CAD Based Variation Simulation Modelling
  • GD&T (Geometrical Dimensioning and Tolerancing) support
  • Trainings based on ISO 1101 international standard (ASME Y14.5 on request)
  • Implementation and validation of GD&T for drawings
